تفاصيل المنتج
Place of Origin: China
اسم العلامة التجارية: JGPV
شروط الدفع والشحن
Minimum Order Quantity: 1 SetFlow way: Two way
Packaging Details: Plywood box safety packing
Delivery Time: One week
Payment Terms: L/C,T/T,Western Union
Supply Ability: 500 Set per month
Application:: |
General |
Certificate:: |
ISO9001, ISO14001 |
Medium Type:: |
Water, steam and oil etc. |
Function：: |
Condensate drain |
Connection:: |
Flange connection |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |
Application:: |
General |
Certificate:: |
ISO9001, ISO14001 |
Medium Type:: |
Water, steam and oil etc. |
Function：: |
Condensate drain |
Connection:: |
Flange connection |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |
| Attribute | Value |
|---|---|
| Application | General |
| Certificate | ISO9001, ISO14001 |
| Medium Type | Water, steam and oil etc. |
| Function | Condensate drain |
| Connection | Flange connection |
| Mounting Type | Direct Mount |
| Standard Or Non-Standard | Standard |
| Flow way | Two way |
| Actuation | Manual, Electric, Pneumatic, Automatic |
| Sealing Performance | Sealing |
| Working Temperature | Normal Temperature And High Temperature |
| Pressure Application | Normal Pressure |
| Quality Warranty | 18 Months |
The gate plate of a gate valve has two sealing surfaces. The most commonly used mode is that the two sealing surfaces of the gate valve form a wedge shape, and the wedge angle varies with the valve parameters.
The gate plate of a wedge gate valve can be made into a whole, called a steel gate plate; It can also be made into a gate that can produce slight deformation to improve its processability and compensate for the deviation of the sealing surface angle during the processing. This type of gate is called an elastic gate.

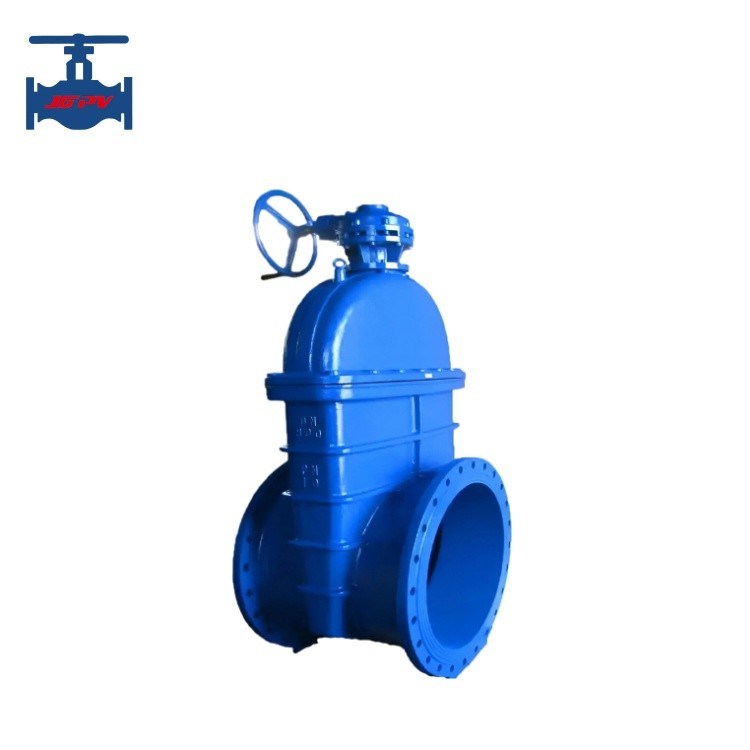

Soft sealed gate valve is a replacement product of traditional gate valve, which utilizes the compensation effect of elastic gate plate to produce slight deformation and achieve good sealing effect. This valve has significant advantages such as lightweight switch, reliable sealing, good elastic memory, and long service life. It can be widely used in fluid pipelines such as tap water, sewage, construction, food, electricity, medicine, metallurgy, textile, energy systems, etc.
| Parameter | Value |
|---|---|
| Diameter nominal DN (mm) | 40～600 |
| Pressure nominal PN (MPa) | 1.0～2.5 |
| Test standard | Strength test (MPa): 1.5 times of pressure nominal Sealing test (MPa): 1.1 times of pressure nominal |
| Main Components |
Body: Ductile iron Bonnet: Ductile iron Stem: 2Cr13 O type ring: NBR Seal: NBR Gland: Ductile iron Disc: Ductile iron wrapped by NBR |
| Medium suitable | Water |
| Working temperature | 0℃～80℃ |
| Connection type | Flange |
